How Car Brakes Work: Parts of the Brake System

Published On:
August 18, 2025
Last Updated:
November 17, 2026

Car brakes work by turning motion into heat. When you press the brake pedal, fluid pressure pushes brake pads against a spinning disc at each wheel. Friction slows the wheel, turning the car’s motion into heat. Every other part of the brake system multiplies the force from your foot and delivers it evenly to all four wheels.

Key Takeaways

  • Brakes convert the car’s motion into heat through friction.
  • A new car must stop from 100 km/h (62 mph) in 70 meters or less (FMVSS 135).
  • There are two types of brake systems: disc and drum. Most cars have disc brakes on both axles, while some older models have drum brakes on the rear axle.
  • Pads, rotors, shoes, and fluid are the parts that wear out and get replaced.

How do car brakes work?

how car brakes work

A moving car carries kinetic energy, and brakes exist to dissipate it quickly. Federal Motor Vehicle Safety Standard 135 requires a passenger car to stop from 100 km/h in no more than 70 meters, about 230 feet (49 CFR 571.135, S7.5). The system does that with friction. A pad rubbing on a metal disc creates friction; the friction slows the vehicle, and the brake gets hot. That’s how every brake works, from a bicycle to a truck. Getting rid of heat is the whole job.

What happens when you press the brake pedal?

A hydraulic brake system carries the force from your foot to the brake at each wheel in well under a second. Here’s the chain:

  1. Pedal. You press the brake pedal. A lever multiplies the force you apply.
  2. Brake booster. The booster uses engine vacuum or an electric pump to multiply that force again.
  3. Master cylinder. The pedal pushes a piston into the master cylinder, which is filled with brake fluid. That creates pressure.
  4. Lines and hoses. The pressure travels through steel brake lines and then flexible rubber hoses to each wheel. Fluid can’t be compressed, so the force arrives at once and evenly.
  5. Calipers or wheel cylinders. Fluid enters the caliper on a disc brake, or the wheel cylinder on a drum brake, and pushes the pistons outward.
  6. Friction. The caliper squeezes the brake pads against the rotor. The wheel slows, and the tires bring the car to a stop.

When you let go of the pedal, the pressure drops. The pads back off a fraction of a millimeter, and the wheel turns freely again.

Disc brakes and drum brakes: what’s the difference?

Cars have two main types of brakes, and they do the same job in different ways. Disc brakes use a caliper that squeezes pads onto a flat disc, usually called a rotor. Drum brakes have curved shoes that press outward against the inside of a drum. Most cars have disc brakes on both axles, while some older models may have drum brakes on the rear axle.

Disc brakes Drum brakes
How it grips Caliper squeezes pads onto a rotor Wheel cylinder pushes shoes against a drum
Heat Open to the air, cools quickly Enclosed, holds heat longer
Where you find them Both axles on most cars Rear axle on some older models
Wearing part Brake pads (and rotors) Brake shoes

A car with disc brakes all round stops harder and fades less. Drums cost less and last a long time on the lightly loaded rear axle. Other systems sit on top of these two: the parking brake, anti-lock braking, and regenerative braking on hybrids and electric cars.

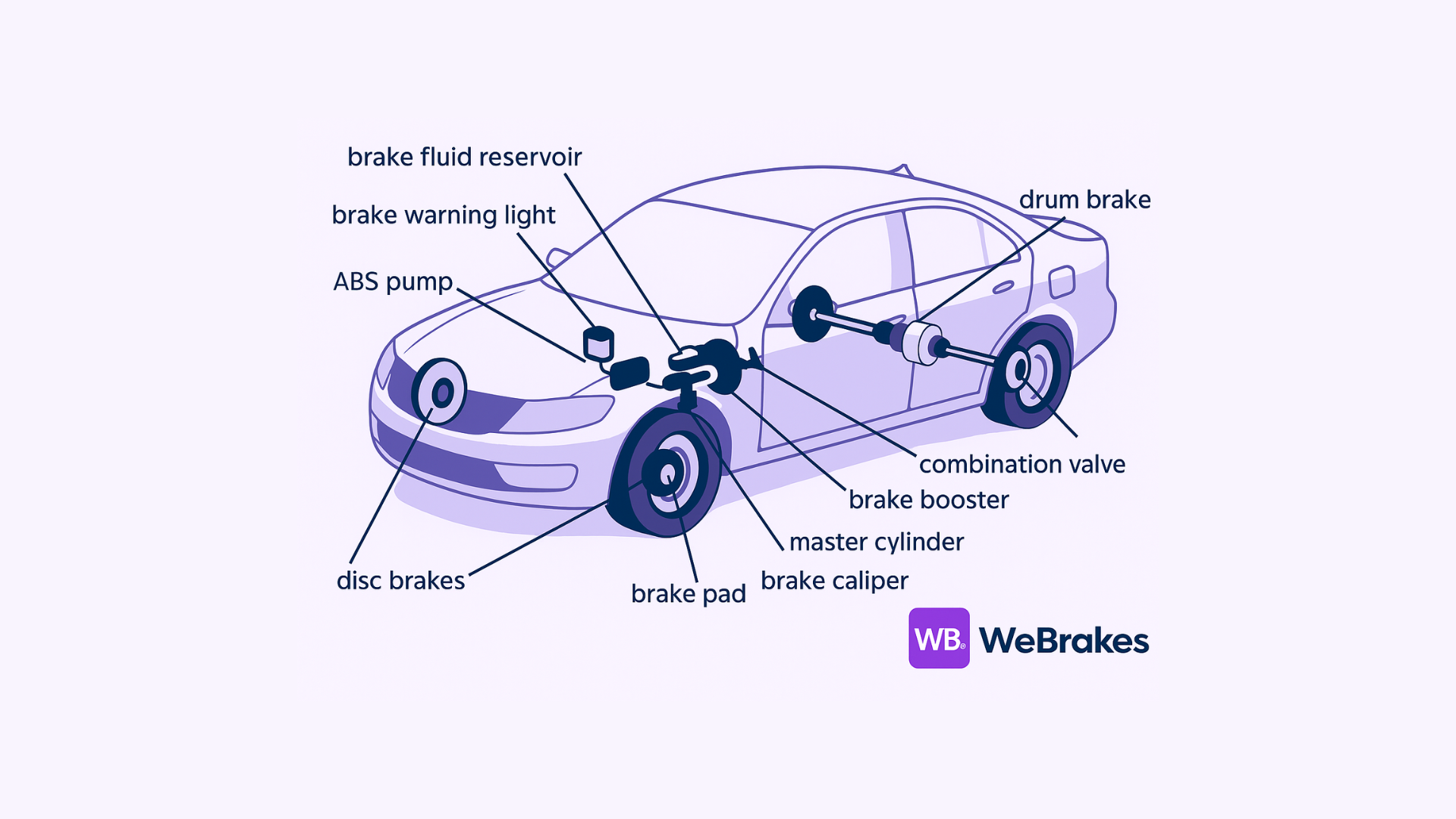

What are the parts of the brake system?

disc brake system

Each part has one job, and each wears differently. Here’s what each one does, and where to go when it needs work:

  • Brake pads. Friction material bonded to a steel backing plate. They wear a little every time you brake. See brake pad replacement and how to check your brake pads.
  • Rotors. The discs the pads clamp. They wear thinner and can develop grooves, heat spots, or uneven thickness. Rotors are replaced together with the pads; see brake rotor replacement and front brake replacement.
  • Brake calipers. The clamps that hold the pads. Pistons and slide pins can seize, which drags a pad and pulls the car to one side. See brake caliper replacement.
  • Brake fluid. It carries the pressure. It absorbs moisture over time, which lowers its boiling point. See brake fluid flush.
  • Brake hoses. Flexible rubber hoses link the steel lines to each wheel so the suspension can move. Rubber cracks and swells with age. See brake hose replacement. Rigid steel brake lines are a separate repair that WeBrakes doesn’t carry out.
  • Master cylinder and booster. They create and multiply the pressure. They rarely fail, but a pedal that slowly sinks points here.

How does anti-lock braking (ABS) work?

Anti-lock braking stops the wheels from locking in a hard stop. A sensor at each wheel watches its speed. If one wheel is about to lock, a valve releases and reapplies pressure to that wheel many times a second. You feel it as a pulsing pedal. The car keeps its grip, so you can still steer. Federal rules require a separate yellow warning light if the system fails (49 CFR 571.135, S5.5).

Who invented the hydraulic brake?

Early cars used rods and cables, which pulled unevenly. Malcolm Loughead, later spelled Lockheed, patented a hydraulic brake in 1917. In 1921, the Duesenberg Model A became the first production car with four-wheel hydraulic brakes (ASME, Landmark 284). The principle hasn’t changed since: fluid in a sealed system pushes equally everywhere.

Why do brake parts wear out?

Because friction is the point. Every stop rubs a little material off the pads or shoes and heats the rotors. Push them too hard for too long, and you get brake fade: the pads overheat and stop gripping until they cool. Fluid ages as well. Old, wet fluid can boil under heavy braking and leave you with a soft pedal.

Pads and rotors wear as a pair. A worn rotor with grooves or heat spots shortens the life of fresh pads, which is why WeBrakes replaces pads and rotors together as standard.

Brake system guides

This page is the starting point. Each guide below goes deeper on one part or one symptom:

If you’d rather have someone look, WeBrakes does a mobile brake inspection at your home or office.

Frequently asked questions

What’s the difference between brake lines and brake hoses?

Brake lines are rigid steel tubes that run along the car's body. Brake hoses are short, flexible sections at each wheel that let the wheel move with the suspension. Both carry fluid under pressure. Hoses wear from flexing and age; steel lines mostly fail from rust.

Do you need to break in new brake pads?

Yes. New pads need to lay an even film of material on the rotor. A common method is the 30-30-30 rule: from about 30 mph, brake firmly down to 5 or 10 mph without stopping, drive gently for about 30 seconds to cool, and repeat about 30 times (SlashGear, 2026).

Do electric cars use the same brakes?

They have the same hydraulic disc brakes, plus regenerative braking. The electric motor slows the car and recharges the battery, so the pads are used less and last longer. The friction brakes still need inspecting, because parts that rarely work hard can rust and stick.
